Hangzhou Giant Lift Co., Ltd. is famous China Electric Chain Hoist Manufacturers, located near the gorgeous tourist destination West Lake --- Hangzhou, a city of "innovation, vitality, collaboration and tolerance”...We are engaged in manufacturing and selling industrial lifting, material handling products, hydraulic tools building construction tools and power construction tools. Our history begins at 1999 as a sales department and after decades of development our businesses have expended to more than 50 countries on five continents. On 2019 we started our independent operation and reformed as Giant Lift Co., Ltd. for better business development.
20 Years Experience
As one of the leading OEM Electric Chain Hoist factory, we have a complete company system, including Product development department, Quality control department, sourcing department, sales department (More than 20 years of experience) and finance department. We focused on manufacturing material handling product such as lift tables, manual & electric pallet trucks and lifting platforms over 35 years, we also exporting manual & electric chain hoist, lever hoisting, lifting clamp and steel jack. Based on our customer needs our products also expends to areas like Auto maintenance tools and power construction tools, playground parts and custom plastic parts. We are your ideal choice for one stop purchase with our compete line of industrial lifting/moving equipment. Our products can meet the needs of customers and the local market, be able to provide standardized and customized products. Our professional sales team understand the industry standards of different products in different markets, we can help customers review whether the products meet local standards and provide professional testing services.
Honor certificate
The company is a scientific and technological enterprise integrating design, research and development, and production. It has a number of inventions and practical patents.
CE-GTWY
Chain hoist
Clamper
Electric hoist HHBD
Electric winch KDJ

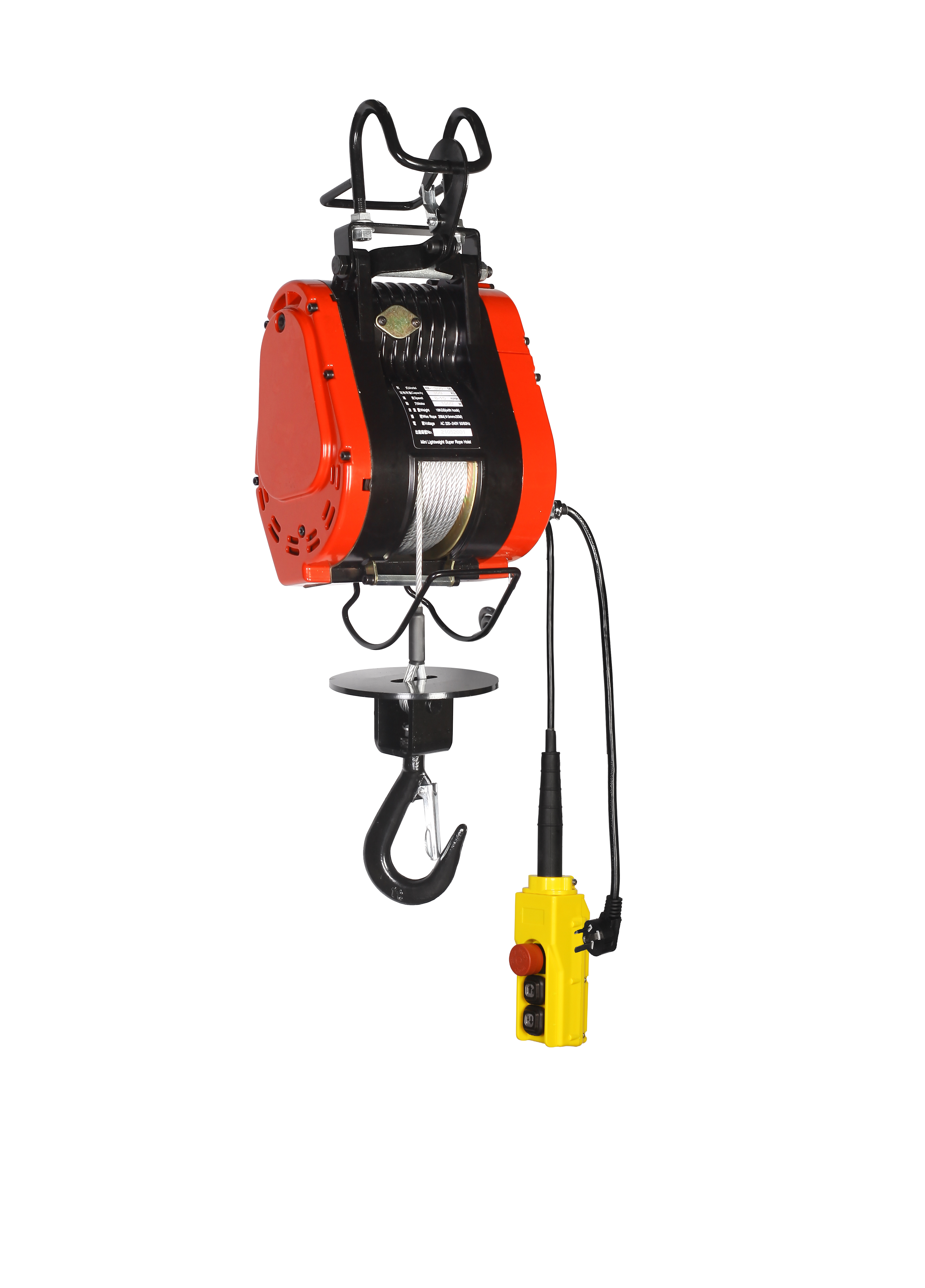

Electric winch
Industry knowledge extension
Here is more relevant industry knowledge about Electric Chain Hoist
Electric Chain Hoist Manufacturer & Supplier
Hangzhou Giant Lift Co., Ltd. is a professional Electric Chain Hoist manufacturer and supplier based in Hangzhou, China. Since 1999, we have designed and produced a comprehensive range of electric chain hoists for global industries, including construction, manufacturing, warehousing, and maintenance. Our product line covers classic, low-clearance, and servo-controlled models, each engineered for reliable performance and long service life.
We supply both standardized hoists and custom OEM solutions, backed by our in-house R&D, quality control, and export experience to over 50 countries. Whether you need a single hoist for a workshop or a fleet for a production line, our team provides technical support from selection to commissioning.
Our Electric Chain Hoist Range
We offer several series to match different duty cycles, lifting heights, and control requirements:

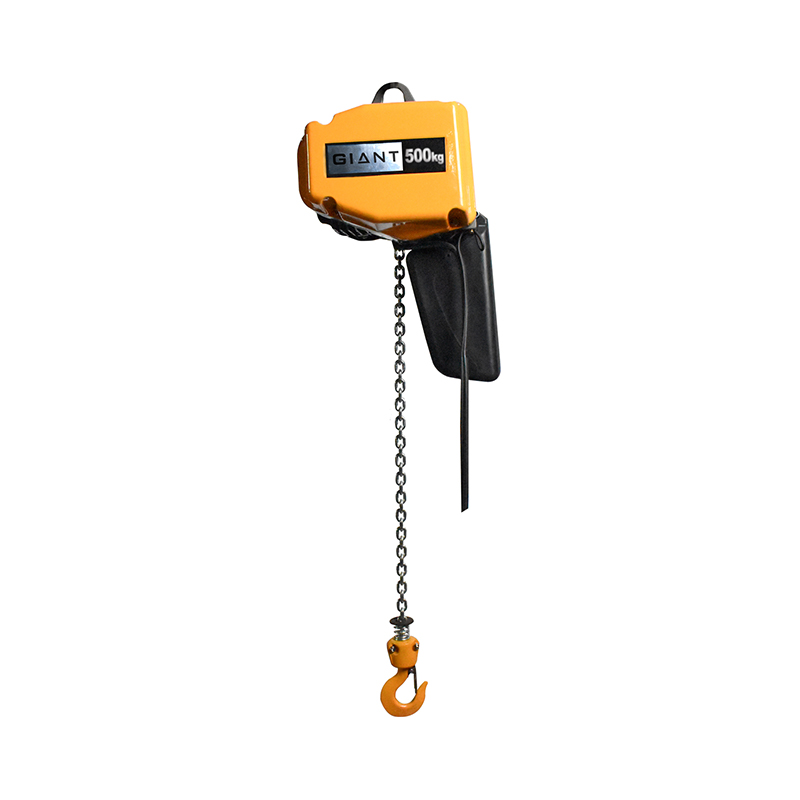

Classic Electric Chain Hoist HHBD – Light aluminum alloy shell, ideal for general workshop lifting.
Low Clearance Type HHBD-II – Optimized structure to minimize hook distance, perfect for low-headroom facilities.
HHBD-T and HHBD-III – Enhanced heat dissipation with built-in fan, suitable for longer working times.
Suspending Electric Hoist ATX-B/BK – Flexible suspension options for fixed or trolley mounting.

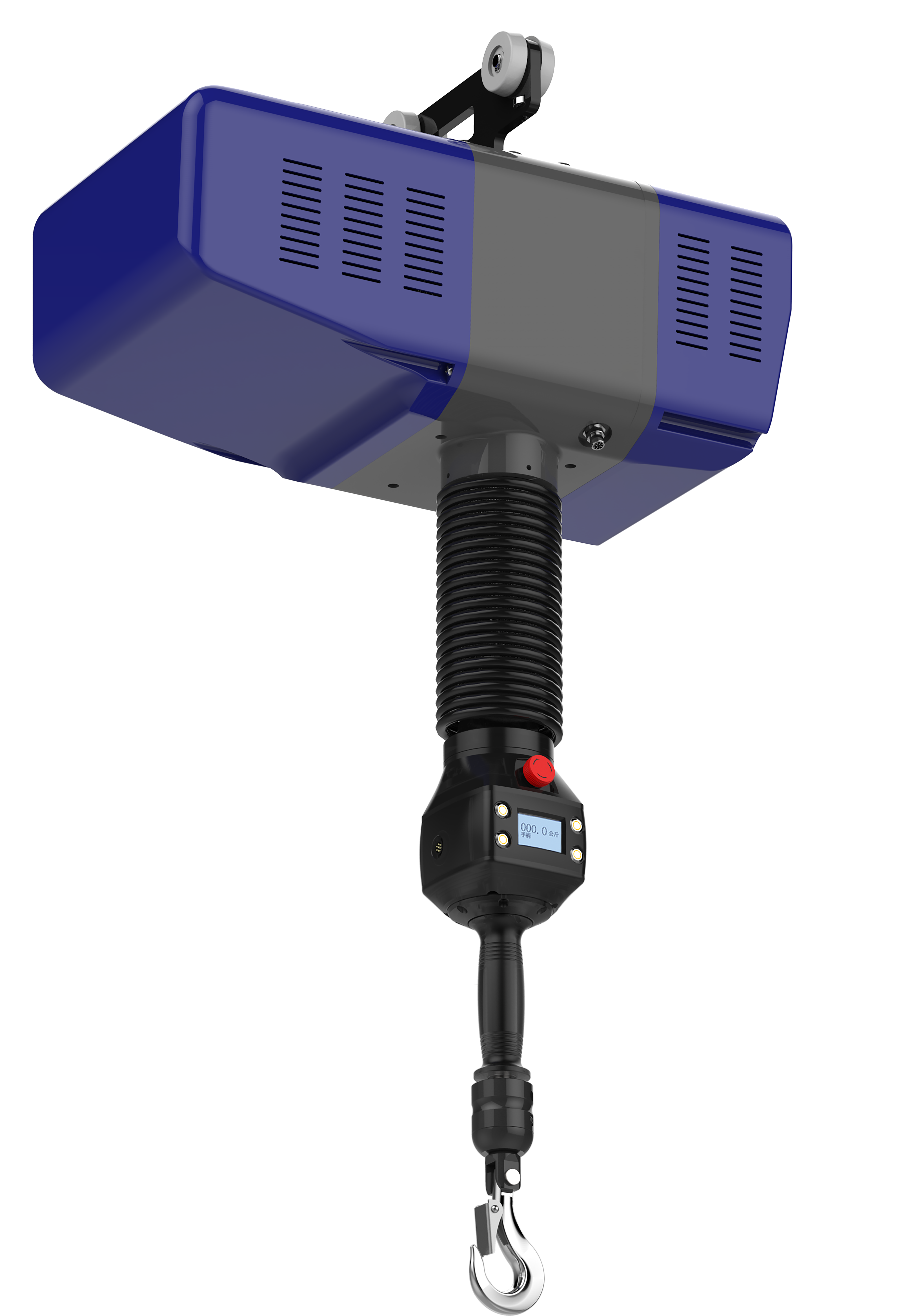

Electric Hoist Q7 and X3 – Servo motor control for precise positioning and stable operation, ideal for automated lines.
Application Fit: HHBD series suits general lifting; HHBD-II for low clearance; Q7/X3 for high-precision tasks like assembly or machine feeding.
Technical Advantages and Performance
Our hoists are built with high-grade aluminum alloy housings that reduce weight while maintaining strength. The gearbox and brake systems are designed for frequent starts and stops, and the chain is heat-treated for wear resistance. We offer single-phase and three-phase motors, with lifting capacities typically from 0.5t to 10t, and lifting speeds configurable to your needs.
Figure 1: Typical performance range across our electric chain hoist series.
The chart above illustrates the broad performance envelope of our hoists. Lifting capacity spans from light-duty 0.5t models to heavy-duty 10t units, allowing you to match the hoist to your load requirements without oversizing. Lifting speeds are optimized for productivity—faster for light loads, slower for heavy loads to ensure control. Motor power is selected based on the duty cycle, with higher power for continuous operation. This data reflects our design philosophy: balancing speed, strength, and thermal endurance to minimize downtime in real production environments.
Structure and Working Principle
An electric chain hoist consists of an electric motor, gearbox, load chain, sprocket, and brake system. The motor drives the gearbox, which rotates the sprocket to lift or lower the chain. A disc brake engages automatically when power is off, preventing load drift. Our hoists include limit switches for top and bottom positions, and overload protection to safeguard the equipment and operator.
Application Scenarios
Construction: Lifting steel beams, concrete panels, and heavy tools on site.
Manufacturing: Moving components along assembly lines, machine loading.
Warehousing: Handling pallets and bulky items in racks.
Maintenance: Removing engines, pumps, and other heavy parts.
Configuration Options and Automation Integration
We offer various configurations: fixed mounting, lug mounting, or with manual/ motorized trolley. Control options include pendant push-button, remote control, and for Q7/X3, servo control with induction handle for precise positioning. Our hoists can be integrated into overhead crane systems or used standalone. We provide the necessary interface documentation for PLC integration if required.
Figure 2: Lifting speed decreases as capacity increases to maintain control and safety.
This line chart shows the inverse relationship between lifting speed and capacity across our range. For example, a 0.5t hoist can lift at up to 10 m/min, while a 10t hoist operates at around 2 m/min. This is a deliberate design choice: heavier loads require slower speeds to ensure precise positioning and reduce stress on the brake and chain. For applications that need both high speed and high capacity, we can recommend dual-speed motors or frequency inverters, which we can integrate upon request.
Quality Assurance and Testing
We implement a multi-stage inspection process: incoming material checks, in-process quality control, and 100% final testing. Our testing equipment includes load testing machines, hardness testers, and static tensile testers. Each hoist is test-run under load before shipment to verify performance and safety. We can provide test certificates and CE documentation for applicable models.
Installation, Maintenance, and Support
We provide installation instructions and, for complex projects, remote guidance. Maintenance is straightforward: regular inspection of chain lubrication, brake adjustment, and electrical connections. We supply spare parts and offer technical support via email or phone. Our proximity to Ningbo Port ensures efficient shipping worldwide.
Information We Use to Configure Your Solution
To prepare an accurate proposal, we need the following details:
Parameter
Why It Matters
Load capacity (kg/t)
Determines hoist size and chain specification.
Lifting height (m)
Affects chain length and drum capacity.
Power supply (V/Hz/phase)
Ensures motor compatibility with your site.
Mounting type (fixed, trolley, etc.)
Defines the suspension kit and beam interface.
Control type (pendant, remote, servo)
Matches operator preference and automation level.
Duty cycle / operating hours
Helps select motor power and cooling features.
Why Choose Hangzhou Giant Lift?
We are a direct manufacturer with over 20 years of export experience. Our in-house R&D team supports customization, and our quality control department ensures consistent output. We have served clients in more than 50 countries, including OEM partnerships with global companies. Our goal is to provide reliable lifting solutions that improve your operational efficiency.
Frequently Asked Questions
Q1: What is the typical lead time for electric chain hoists?
Standard models are usually shipped within 15-30 days after order confirmation. Customized hoists may take longer depending on specifications. We provide a confirmed lead time with each quotation.
Q2: Can you provide hoists with special voltages or frequencies?
Yes, we offer motors for various power supplies, including 110V, 220V, 380V, 415V, and 50/60Hz. Please specify your local electrical standard when requesting a quote.
Q3: How do I choose between the HHBD and Q7 series?
The HHBD series is cost-effective for general lifting with moderate precision. The Q7 and X3 series feature servo motors for precise positioning and smoother operation, ideal for automated or high-accuracy applications. We can help you evaluate based on your duty cycle and control needs.
Q4: What maintenance is required for electric chain hoists?
Regularly inspect the chain for wear, keep it lubricated, check brake function, and ensure electrical connections are tight. We provide a maintenance manual with each hoist and recommend periodic professional inspections.
